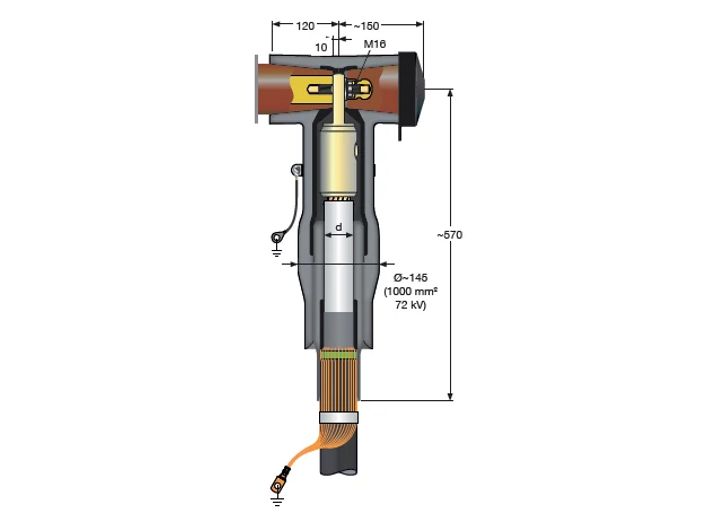

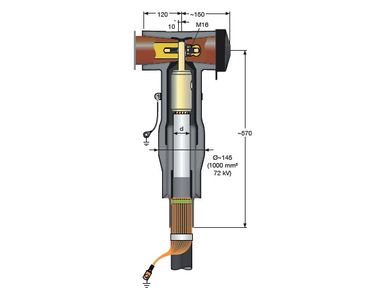

CB 72

The branch connector type CB 72 is applicable to the outer cone bushing type F of GIS and transformers and is suitable for XLPE- and EPR-insulated cables with Al or Cu conductors.
The branch connector type CB 72 is applicable to the outer cone bushing type F of GIS and transformers and is suitable for XLPE- and EPR-insulated cables with Al or Cu conductors.

Product Information

Further product data, downloads and certificates

Product Information
Downloads

Product Information

Max. cross section: 1200 mm²
Core insulations: 32 - 74 mm
Max. dimensions (Ø x L): 145 x 270 x 610 (mm)
Max. weight: 14 kg
Operating voltage Ur: 72 kV
Product type: Branch
DIN EN 50299 norms: EN 50673, IEC 60840
Optional kits: Usable for on- and offshore application, Integrated capacitive measuring point
Max. cross section: 1200 mm²
Core insulations: 32 - 74 mm
Max. dimensions (Ø x L): 145 x 270 x 610 (mm)
Max. weight: 14 kg
Operating voltage Ur: 72 kV
Product type: Branch
DIN EN 50299 norms: EN 50673, IEC 60840
Optional kits: Usable for on- and offshore application, Integrated capacitive measuring point
