Offshore
CC 72
The coupling connector CC 72 is suitable for XLPE and EPR insulated cables with Al or Cu conductors.
The coupling connector CC 72 is suitable for XLPE and EPR insulated cables with Al or Cu conductors.
Product Information
Further product data, downloads and certificates
Product Information
Downloads
Product Information
Max. cross section: 1200 mm²
Core insulations: 32 - 74 mm

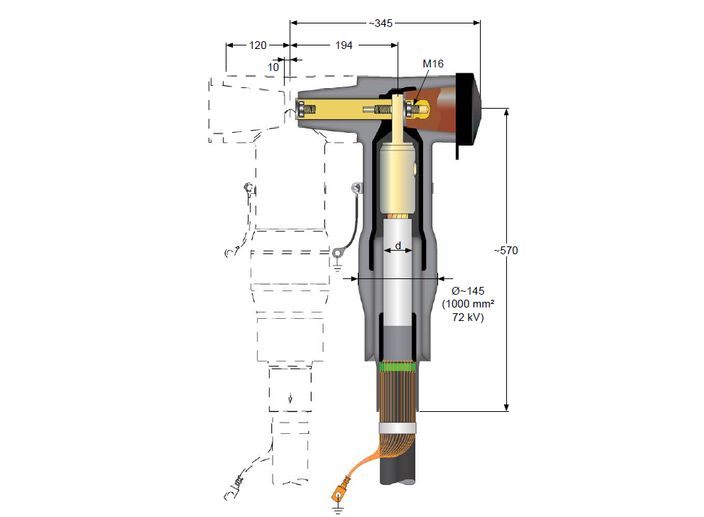

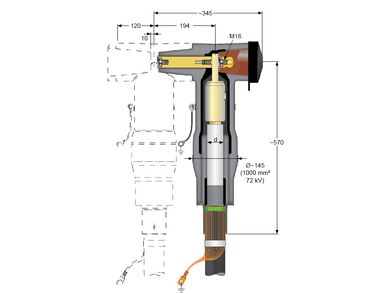

Max. dimensions (Ø x L): 145 x 270 x 610 (mm)
Max. weight: 13 kg
Operating voltage Ur: 72 kV
Product type: Coupler
DIN EN 50299 norms: EN 50673, IEC 60840
Optional kits: Usable for on- and offshore application, Integrated capacitive measuring point
Downloads
- Data Sheets
