Joints

JC 24-CC

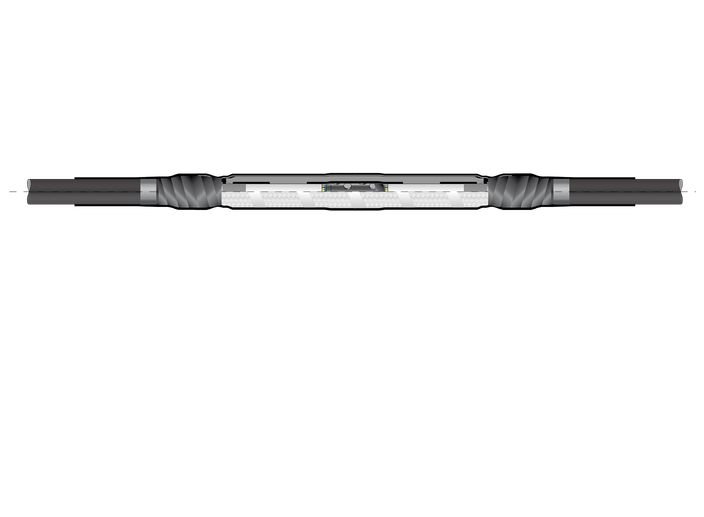

Cold shrink straight joint with joint body made of silicone rubber with outer protective cold shrinking tube made of EPDM, for plastic insulated cables with Cu wire screen up to 24 kV.
Cold shrink straight joint with joint body made of silicone rubber with outer protective cold shrinking tube made of EPDM, for plastic insulated cables with Cu wire screen up to 24 kV.

Product Information

Further product data, downloads and certificates

Product Information
Downloads

Product Information

Max. cross section: 300 mm²
Core insulations: 22.2 - 34.6 mm
Max. outer sheath Ø: 46 mm
Max. outer sheath: 46 mm
Core type: Single-Core
Operating voltage Ur: 24 kV
Product type: Cold Shrink
Application: Straight Joint
DIN norms: 61442, HD 629.1
Max. cross section: 300 mm²
Core insulations: 22.2 - 34.6 mm
Max. outer sheath Ø: 46 mm
Max. outer sheath: 46 mm
Core type: Single-Core
Operating voltage Ur: 24 kV
Product type: Cold Shrink
Application: Straight Joint
DIN norms: 61442, HD 629.1
