PILC
SMTD 12 kV

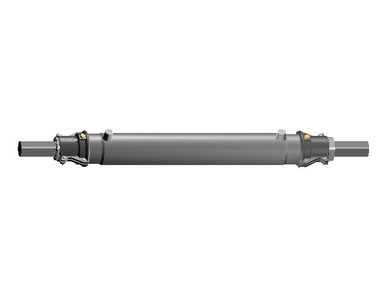

Cable joint for paper insulated 3-core lead sheathed cables with Al or Cu conductors 12 kV
Cable joint for paper insulated 3-core lead sheathed cables with Al or Cu conductors 12 kV
Product Information
Further product data, downloads and certificates
Product Information
Downloads
Product Information
PILC Max. cross section: Aluminium: 35 - 240 mm², Copper: 25 - 240 mm²
XLPE Max. cross section: Aluminium: 35 - 240 mm², Copper: 25 - 240 mm²
PILC Core insulations: 18 - 66 mm
Termination length: 1135 - 1935 mm
Max. outer sheath: 100 mm
Max. outer sheath Ø: 100 mm
Max. weight: 52 kg
Max. outer sheath: 100 mm
Core type: Three-Core
Operating voltage Ur: 12 kV
Product type: Plastic coated steel tube
Application: Repair Cable
DIN norms: SEN 24 14 34, VDE 0278, SEN 24 14 23
Additional accessories: Transition joint set PXS (tape) or PXSA (SOT), Spring loaded gaskets FPA
Downloads
- Data Sheets
