Transition Joints
SM 145-550 kV

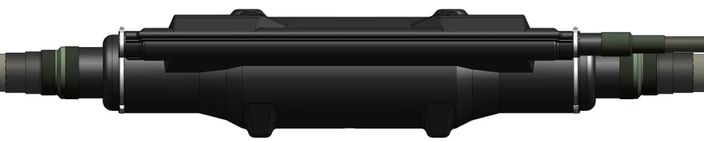

Pre-moulded three-piece joint with housing outer protection
Pre-moulded three-piece joint with housing outer protection
Product Information
Further product data, downloads and certificates
Product Information
Downloads
Product Information
Max. cross section: 3200 mm²
Core insulations: 97 - 140 mm
Max. outer sheath Ø: 185 mm
Max. dimensions (Ø x L): 3620 x 715 (mm)
Max. weight: 850 kg
Max. outer sheath: 185 mm
Core type: Single-Core
Operating voltage Ur: 145, 170, 245, 300, 420, 550 kV
Product type: Metal Housing
Application: Straight Joint
DIN norms: IEC 60840, IEC 62067
Optional kits: Optical Fiber connection set
