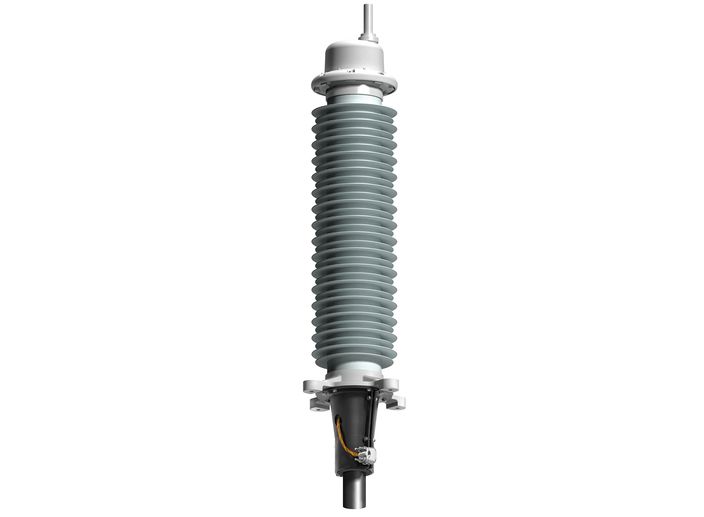

Dry prefabricated outdoor termination
Product Information
Further product data, downloads and certificates
Product Information
Downloads
Product Information
Max. cross section: 2500 mm²
Core insulations: 50 - 102 mm
Termination length: 1955 mm
Max. outer sheath Ø: 150 mm
Max. weight: Dry: 102 kg
Max. outer sheath: 150 mm
Operating voltage Ur: 123, 145 kV
Creepage path: 4650 mm
Product type: Composite Insulator
Application: Outdoor Termination
DIN EN 50299 norms: IEC 60840
IEC standard 62271-209: Dry
Optional kits: Opto Kit, Optical Fiber connection set, Optical Fiber connection set, Optical Fiber connection set
