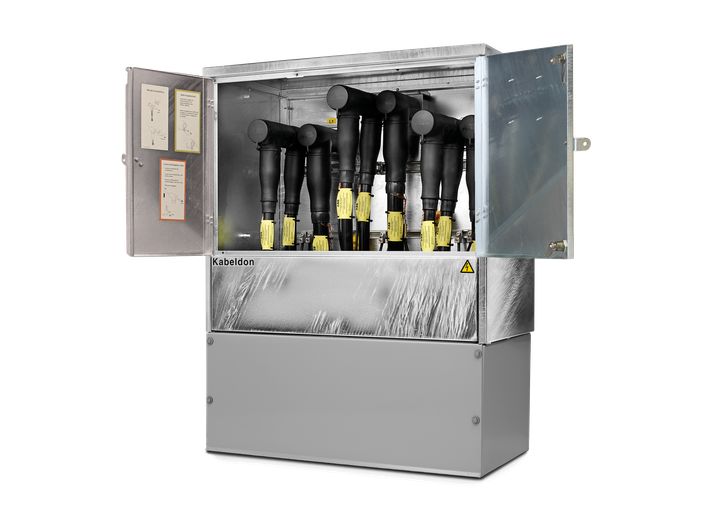

Cable branch cabinet
HDC-A 12-36 kV
Cabinet for jointing or branching XLPE and EPR insulated cables 12-36 kV with conductor cross section 25-630 mm² (630 A). Up to four cables can be connected.
Cabinet for jointing or branching XLPE and EPR insulated cables 12-36 kV with conductor cross section 25-630 mm² (630 A). Up to four cables can be connected.
Product Information
Further product data, downloads and certificates
Product Information
Downloads
Product Information
Max. cross section: 50 - 630 mm²
Core insulations: 12 kV: 13 - 45 mm, 24 kV: 17 - 45 mm, 36 kV: 24 - 55 mm
Max. weight: 140 kg
Core type: Single-Core, Three-Core
Operating voltage Ur: 12, 24, 36 kV
Product type: Branch
DIN norms: HD 629.1 S2, IEC 60439-5 CENELEC
