PILC
OTIA 12 kV

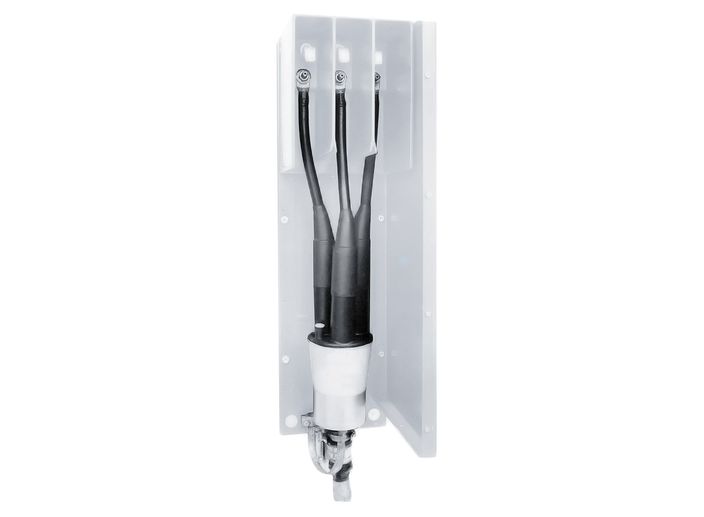

Termination for paper insulated lead sheathed 3-core cables with Al or Cu conductors 12-17,5 kV. For indoor applications
Termination for paper insulated lead sheathed 3-core cables with Al or Cu conductors 12-17,5 kV. For indoor applications
Product Information
Further product data, downloads and certificates
Product Information
Downloads
Product Information
PILC Max. cross section: Aluminium: 35 - 240 mm², Copper: 25 - 240 mm²
XLPE Max. cross section: Aluminium: 35 - 240 mm², Copper: 25 - 240 mm²
PILC Core insulations: 18 - 66 mm
Termination length: 900 mm
Max. outer sheath: 100 mm
Max. outer sheath Ø: 100 mm
Max. weight: 4.1 kg
Max. outer sheath: 100 mm
Core type: Three-Core
Operating voltage Ur: 12 kV
Product type: Plastic coated steel tube
Application: Indoor Termination
DIN norms: SEN 24 14 34
Additional accessories: Expansion vessel GEX, Cable lug SCL-B, Spring loaded gasket FPA
