Connectors
CB 42-1250/3

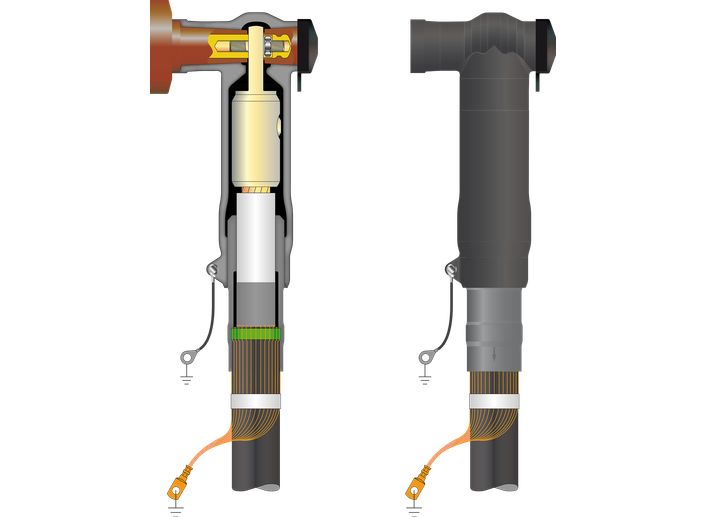

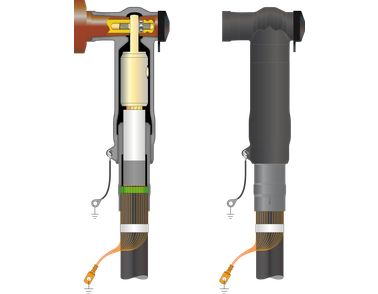

Elbow branch connector made of silicone rubber for connection up to 42 kV XLPE-cables to outercone bushing type C1 (630A) and C2 (1250A) according to EN 50180 and 50181
Elbow branch connector made of silicone rubber for connection up to 42 kV XLPE-cables to outercone bushing type C1 (630A) and C2 (1250A) according to EN 50180 and 50181
Product Information
Further product data, downloads and certificates
Product Information
Downloads
Product Information
Max. cross section: 1000 mm²
Core insulations: 21.2 - 57.8 mm
Core type: Single-Core, Three-Core
Max. operating Voltage (Ur): 42 kV
Product type: Branch
Application: Switch Gear, Transformer
DIN norms: EN 50180, HD 629.1 S2, EN 50181.
