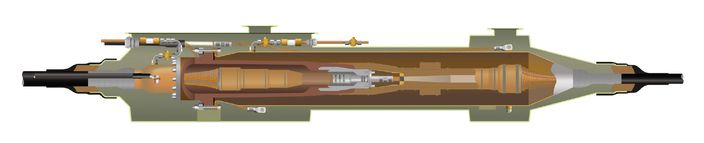

Stop joint for single-core LPOF cable
Product Information
Further product data, downloads and certificates
Product Information
Downloads
Product Information
LPOF Max. cross section: 800 mm²
Core insulations: 62 mm
Max. outer sheath Ø: 100 mm
Max. dimensions (Ø x L): 3150 x 530 (mm)
Material conductor: Copper
Max. outer sheath: 100 mm
Core type: Single-Core
Operating voltage Ur: 145 kV
Application: Stop Joint
DIN norms: IEC 60141-1
