LPOF

MVEO/i 72-170 kV

Straight-through-joint single core cable, protection with shrink technique/housings
Customer service

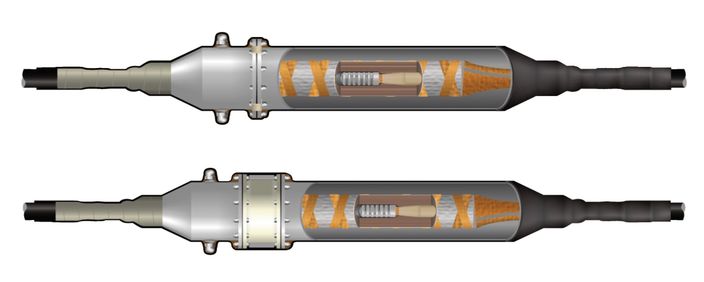

Image of MVEO/i 72..170 LPOF
Customer service
Straight-through-joint single core cable, protection with shrink technique/housings

Product Information

Further product data, downloads and certificates

Product Information
Downloads

Product Information

LPOF Max. cross section: 1400 mm²
Core insulations: 76 mm
Max. outer sheath Ø: 102 mm
Max. dimensions (Ø x L): 2500 x 410 (mm)
Material conductor: Copper
Max. outer sheath: 102 mm
Core type: Single-Core
Operating voltage Ur: 145, 170 kV
Application: Straight Joint
DIN norms: IEC 60141-1
LPOF Max. cross section: 1400 mm²
Core insulations: 76 mm
Max. outer sheath Ø: 102 mm
Max. dimensions (Ø x L): 2500 x 410 (mm)
Material conductor: Copper
Max. outer sheath: 102 mm
Core type: Single-Core
Operating voltage Ur: 145, 170 kV
Application: Straight Joint
DIN norms: IEC 60141-1

Downloads

  • Data Sheets

MVEO/i 72 -​ 170 kV

EN
pdf81 kB
